FAQ - PIX4Dcatch

General information

What is PIX4Dcatch?

PIX4Dcatch is a mobile application for ground 3D scans from Android and iOS devices. PIX4Dcatch allows anyone to easily acquire the right terrestrial data for digitizing the reality around them and turning it into accurate 3D models.

Where can I download the PIX4Dcatch app?

To download the latest version of PIX4Dcatch, visit the App Store and Play Store.

Can PIX4Dcatch be used without an Internet connection?

An internet connection is required every time the application is started to log in. Once the login is complete, an internet connection is not required to capture data. However, an internet connection is required to upload the project to PIX4Dcloud.

If you use a PIX4D-supported RTK device, an internet connection is required during data capture to stay connected to the NTRIP service.

In which languages is PIX4Dcatch available?

PIX4Dcatch is available in English, Japanese, Spanish, French, German, Traditional Chinese, Simplified Chinese, Czech, and Korean languages.

Requirements

What are the recommended devices?


Recommended
Supported
iOS
iPhone 17 Pro Max***
iPhone 17 Pro***                                        iPhone 16 Pro Max                                    iPhone 16 Pro
iPhone 15 Pro Max
iPhone 15 Pro
iPhone 14 Pro
iPhone 14 Pro Max
iPhone 13 Pro
iPhone 13 Pro Max
iPhone 12 Pro
iPhone 12 Pro Max
iPad Pro 11-inch (2nd gen and later)*
Any iPhone device with iOS version 18.0 and higher
Any iPad 11-inch (2nd gen and later) device with iOS version 18.0 or higher
Any iPad 12.9-inch (2nd gen and later) device with iOS version 18.0 or higher
Android
Any Android device with ARCore and Depth API capability**
Any Android device with ARCore capability

*Wi-Fi-only iPad models do not contain an internal GPS. This may result in projects not being geolocated unless a PIX4D-supported RTK device or GCPs are used.

**LiDAR is not supported on Android

*** viDoc SPC+ case is not supported. The case obscures the LIDAR sensor.

Important: RTK devices are not supported on Android from version 1.28.0. Please contact the RTK distributor. If the RTK device was purchased through PIX4D, please Contact Support

Which operating systems does PIX4Dcatch support?

 PIX4Dcatch is supported on devices running iOS [17.0 / 18.0] or later, or Android 9 or later.

Minimum storage for PIX4Dcatch?

It is recommended to have at least 10GB of available storage space for a project with maximum resolution and a large number of images (more than 1750). This ensures sufficient storage capacity to accommodate the project data.

License / Subscription

What is the license of PIX4Dcatch?

PIX4Dcatch Professional is available as a dedicated paid license that unlocks premium tools. Additionally, users with an active PIX4D subscription (including trial licenses) or a One-Time-Charged license with a valid Maintenance Plan, can access the application at no extra cost with limited options. For more information here.



Data Management

Does the PIX4Dcatch app utilize LiDAR (depth) data obtained from the device for processing?

PIX4Dcatch (iOS version) uses LiDAR to capture the depth information of the surroundings during the image acquisition. The LiDAR points will compensate for the lack of 3D points over reflective and low-texture surfaces. Processing with LiDAR data is the default option when uploading to PIX4Dcloud. When processing the exported project in PIX4Dmatic, the depth information can be utilized.

PIX4Dcatch (Android version) does not use depth data.

How does PIX4Dcatch utilize LiDAR data during image capturing and processing?

During the image acquisition, the LiDAR sensor has the following benefits:

  • Real-time feedback from the LiDAR sensor during capture provides guidance on coverage of the project area.
  • Fine-tunes the positioning and pose information that automatically triggers the images.

In processing, the LiDAR data is used directly in two ways:

  • To estimate a more accurate scale of the reconstruction.
  • To fill low-texture areas that photogrammetry alone is not able to reconstruct.

It is important to note that visible features are still required in all images, even when LiDAR data is used.

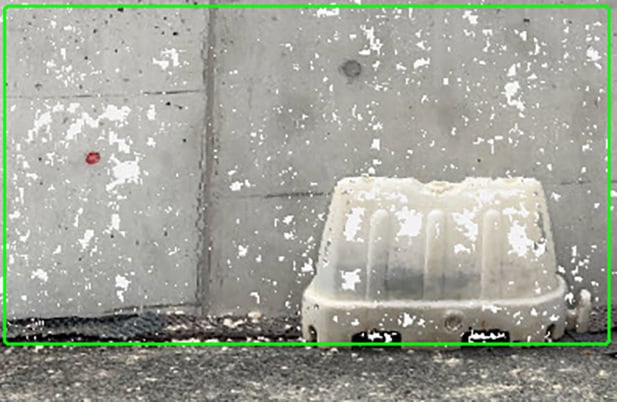

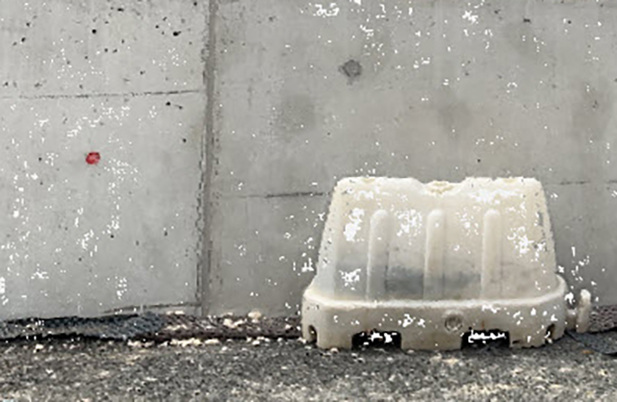

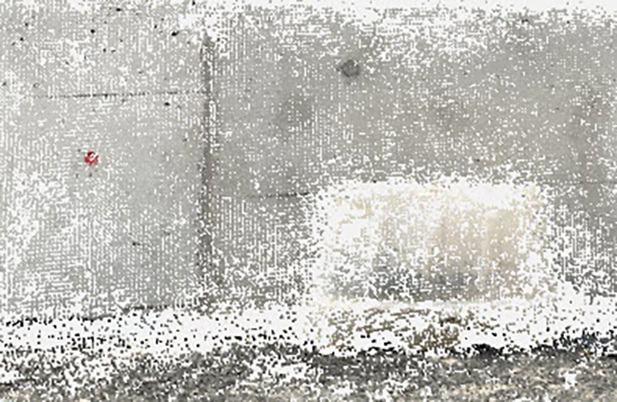

Example: Reflective and homogeneous surfaces are challenging to reconstruct, and the dense point cloud generated from images is likely to have holes. In those cases, the point cloud generated from depth maps can be used to fill the holes.






What is the accuracy of the reconstruction?

The absolute geolocation accuracy depends on how the images are georeferenced and whether GCPs are used in the project.

  • With the integrated GNSS (phone) sensor, the absolute accuracy is expected to be within a few meters.
  • With a supported PIX4D RTK device, absolute accuracy can be within a few centimeters. For more information: RTK devices.
  • When GCPs are used, the absolute accuracy is expected to be in the range of the GCP errors.

Research has revealed that it is possible to achieve 3D models with an absolute geolocation accuracy of less than 5 cm. For more information, see the white paper.

The relative accuracy of the reconstruction is expected to be in the range of 1 - 3 times the Ground Sampling Distance (GSD). See What is the relative and absolute accuracy of mapping.

Can I import external data for visualization?

No, it is not possible to import external data directly into PIX4Dcatch. However, data from PIX4Dcloud and ArcGIS Online can be viewed in augmented reality (AR) in PIX4Dcatch:

  • PIX4Dcloud: upload supported data, such as IFC files, to a PIX4Dcloud project, then open the project in AR in PIX4Dcatch. For more information: Import and visualize an IFC file on PIX4Dcloud.
  • ArcGIS Online: ArcGIS Online web scenes can be opened in AR (from version 2.50.0). From version 2.51.0, IFC models can also be viewed in AR from both PIX4Dcloud and ArcGIS Online projects.
Viewing PIX4Dcloud projects in AR with an RTK device requires a PIX4Dcatch Pro license. Creating an SLPK in PIX4Dcloud for use in ArcGIS requires a PIX4Dcloud license.

Can I directly upload images to PIX4Dcloud for processing using the app?

Yes. Images can be uploaded to the cloud for processing only with an active PIX4Dcloud license or trial.

For more information: How to upload and process with PIX4Dcloud Starter/ PIX4Dcloud Pro.

Does the PIX4Dcatch process the 3D model directly on the mobile device?

No. To process an accurate 3D model, a valid PIX4Dcloud, PIX4Dmatic Standard, PIX4Dmatic Pro, or PIX4Dmatic trial license is required.

Can I include GCPs in my PIX4Dcatch project?

GCPs can be integrated into your PIX4Dcatch project by exporting the images and processing them in PIX4Dcloud or PIX4Dmatic with your GCPs. More information on How to use automatic Tag Detection and manual GCP marking - PIX4Dcatch RTK.

How can I merge drone images with my PIX4Dcatch dataset?

It is possible to combine PIX4Dcatch terrestrial image data and aerial drone data in PIX4Dmatic. Acquire projects with sufficient overlap between them, using Manual Tie Points to merge the two projects together.

Wide variations between GSDs can hinder projects from merging.

For more information: Merge Projects - PIX4Dmatic.

Can I access the raw or native images directly in my app?

Any logged-in user can access and export captured images. Alternatively, images can be accessed via a PIX4Dcloud license by first uploading them to PIX4Dcloud and then downloading them to your workstation.

Can I select the image resolution?

iOS Apple

It is possible to select the resolution when capturing PIX4Dcatch projects. The exact resolutions available will depend on each device. The current resolution will remain as the default selection.

For more information: Advanced Settings - PIX4Dcatch

Requirements: iOS 17 or later, with an iPhone 11 or newer or an iPad Pro (5th generation) or newer.
Important: Selecting higher resolutions increases resource requirements, including longer upload and processing times, as well as additional storage needs.

Android

Due to limitations imposed by ARKit and ARCore, image resolution cannot be selected.

Can I export images from the app?

Every user with a PIX4D account can export images from the app. For more information: How to export PIX4Dcatch projects (iOS/Android).

Contacts

How can I get technical support for PIX4Dcatch?

For technical questions, PIX4D customers and trial holders can contact our support team.

Not a customer yet? Contact sales or post on the PIX4D Community.

Where can I submit the product feedback and feature requests?

Please help us understand what you need most by sharing your use case and upvoting other users' feedback on the PIX4D Community.

RTK devices

What RTK devices are supported in PIX4Dcatch?

  • Trimble Catalyst DA2
  • Leica Zino FLX100 plus
  • Topcon Hyper CR
  • Emlid Reach RX
  • Emlid Reach RX2
  • Bad Elf Flex
  • Bad Elf Flex Mini

How can I purchase a PIX4D-supported RTK device?

Contact us directly to purchase a PIX4D-supported RTK device.

How can I get RTK geotags on mobile images?

When PIX4Dcatch connects to an RTK device, it automatically applies the coordinate reference system (CRS) recommended by the NTRIP service. If your geotags are not in the expected CRS and you are using an older version, update PIX4Dcatch to the latest version.



Which geoids are compatible with PIX4Dcatch and the PIX4D-supported RTK devices?

Below is a list of all the supported Geoid Models and Vertical Coordinate Reference Systems by Country:

Argentina

  • GEOIDE-Ar16 | EPSG: 9255 | SRVN16 height

Australia

  • AUSGeoid09 | EPSG: 5711 | AHD height
  • AUSGeoid09 (Tasmania) | EPSG: 5712 | AHD height
  • AUSGeoid2020 | EPSG: 5711 | AHD height
  • AUSGeoid98 | EPSG: 5711 | AHD height
  • AUSGeoid98 (Tasmania) | EPSG: 5712 | AHD height

Austria

  • Austrian Geoid 2008 | EPSG: 9274 | EVRF2000 Austria height

Belgium

  • hBG18 | EPSG: 5710 | Ostend height

Canada

  • CGG2000/HTv2.0 | EPSG: 5713 | CGVD28 height
  • CGG2013 | EPSG: 6647 | CGVD2013 height
  • CGG2013a (2002) | EPSG: 20034 | CGVD2013a height
  • CGG2013a (1997) | EPSG: 20035 | CGVD2013a height
  • CGG2013a (2010) | EPSG: 9245 | CGVD2013a height

Czech Republic

  • CR-2005 | EPSG: 8357 | Baltic 1957 height

Denmark

  • DNN | EPSG: 5733 | DNN height
  • DVR90 (various years) | EPSG: 5799, 10483, 10484, 10485 | DVR90 height

Faroe Islands (Denmark)

  • FVR09 | EPSG: 5317 | FVR09 height

Finland

  • FIN2000 | EPSG: 5717 | N60 height
  • FIN2005N00 | EPSG: 3900 | N2000 height
  • FIN2023N2000 | EPSG:3900 | N2000 height

France

  • RAF09, RAF18, RAF18b, RAF20 | EPSG: 5720 | NGF-IGN69 height
  • RAC09, RAC23 (Corsica) | EPSG: 5721 | NGF-IGN78 height

Germany

  • GCG2016 | EPSG: 7837 | DHHN2016 height

Greece

  • GR_HEPOS2011 | EPSG: 5716 | Piraeus height

Greenland

  • GGEOID2000 | EPSG: 8266 | GVR2000 height
  • GGEOID2016 | EPSG: 8267 | GVR2016 height

Hungary

  • Geoid2014 | EPSG: 5787 | EOMA1980 height

Iceland

  • IceGeoid2011 | EPSG: 8089 | ISH2004 height

Japan

  • GSIGEO2011 | EPSG: 6695 | JGD2011 (vertical) height
  • GSIGEO2024 | EPSG: 6695 | JPGEO2024 (vertical) height

Latvia

  • LV14 | EPSG: 7700 | Latvia 2000 height

Mexico

  • GGM10 | EPSG: 5703, 6360, 8228 | NAVD88 height

Netherlands

  • NLGEO2018 | EPSG: 5709 | NAP height

New Zealand

  • NZGeoid2009 | EPSG: 4440 | NZVD2009 height
  • NZGeoid2016 | EPSG: 7839 | NZVD2016 height

Norway

  • HREF2008a | EPSG: 5776 | NN54 height
  • HREF2018b | EPSG: 5941 | NN2000 height

Poland

  • PL-geoid-2011 | EPSG: 9650, 9651 | Baltic 1986/EVRF2007-PL height
  • PL-geoid-2021 | EPSG: 9651 | EVRF2007-PL height

Portugal

  • GeodPT08 | EPSG: 5780 | Cascais height

Singapore

  • SGeoid09 | EPSG: 6916 | SHD height

Slovenia

  • SLO-VRP2016/Koper | EPSG: 8690 | SVS2010 height

South Africa

  • SAGEOID2010 | EPSG: 9279 | SA LLD height

Spain (EGM08-REDNAP)

  • Various regions | EPSG: 5782, 10352-10354, 9392-9402 | Heights by region

Sweden

  • SWEN17 | EPSG: 5613 | RH2000 height

Switzerland

  • CHGeo2004 | EPSG: 5728, 5729 | LN02, LHN95 height

Taiwan

  • TWGEOID2018h | EPSG: 8904 | TWVD 2001 height

UK & Ireland

  • OSGM15 | EPSG: 5701-5750, 7707, 9451 | Various height systems across UK & Ireland regions

USA

  • GEOID03, GEOID06, GEOID09, GEOID12A, GEOID12B, GEOID18 | EPSG: 5703, 6360, 8228 | NAVD88 height
  • GEOID12A/B | EPSG: 6640-6644 | Various regional heights (NMVD03, PRVD02, etc.)

Global Models

  • EGM2008 | EPSG: 3855, 7890 | Global height
  • EGM96 | EPSG: 5773 | Global height
