Dataset Details section on PIX4Dcloud

Each PIX4Dcloud project includes a Details section that provides access to essential metadata related to the dataset, images, and data capture. This article explains how to access the Details tab and describes the metadata information available for a project.

IN THIS ARTICLE

How to access the dataset Details section
Information displayed in the Details section
Dataset metadata
Image metadata
Data capture record

Licenses: This feature is available to PIX4Dcloud Starter and PIX4Dcloud Pro licenses.

Roles: Owners, Managers, Editors, and Readers can access the Details section in a dataset.

How to access the dataset Details section

To access the project details:

  1. Open a project from the Drive.

  2. From the menu bar, click Files & Export > Files.

  3. Select the Details tab.

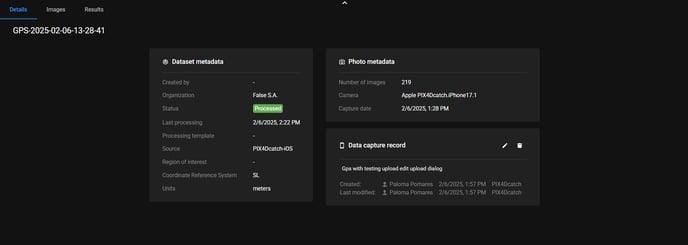

Information displayed in the Details section

The Details section is divided into three main categories:

  • Dataset metadata

  • Photo metadata

  • Data capture record

Dataset Metadata

The dataset metadata provides general information about the project:

  • Created by: The user who created the project.

  • Organization: The organization that owns the license used to generate the project.
    For more information, see Organization Support.

  • Status: Current processing status of the project (NEW, PROCESSING, PROCESSED, or ERROR).

  • Last processing: Date and time of the most recent processing.

  • Processing template: The template used during processing.
    For more information, see Processing options default templates.

  • Source: Indicates how the project or outputs were created or uploaded:

    • PIX4Dcloud: Project created via the web interface.

    • PIX4Dcatch (iOS / Android): Project uploaded from the PIX4Dcatch app.

    • API: Project uploaded via the PIX4Dcloud API.

    • PIX4Dmatic: Outputs uploaded using the Share to Cloud functionality.

    • PIX4Dsurvey: Outputs uploaded using the Share to Cloud functionality.

    • PIX4Dfields: Outputs uploaded using the Share to Cloud functionality.

    • PIX4Dreact: Outputs uploaded using the Share to Cloud functionality.

    • PIX4Dmapper: Project uploaded and processed from PIX4Dmapper.

  • Coordinate system: Output coordinate system of the project.

  • Units: Measurement units used in the project (meters or US feet).

Image Metadata

The photo metadata provides information related to the images used in the project:

  • Number of images: Total number of images in the dataset.

  • Camera: Camera model used for image capture.

  • Capture date: Date when the images were taken.

Data Capture Record

The data capture record contains contextual information entered during or after image capture:

  • Created: Date and user who created the record (typically during capture in PIX4Dcatch).

  • Modified: Date and user who last modified the record.


Note: The Data capture record section is only available for projects uploaded from PIX4Dcatch. For more information, see here.
