How to process Sentera Double4K in PIX4Dfields
The Sentera Double4K (D4K) camera has several versions:- Double 4K Ag+ (RGB and NDVI multispectral imagery).
- Double 4K Analytics (Zoom RGB and NDVI multispectral imagery).
- Double 4K Multispectral (5-band multispectral mapping).
- Double 4K NDVI/NDRE.
All band combinations can be processed directly in PIX4Dfields, but it is recommended to use the XML provided in this article: Your camera is not supported at this time—PIX4Dfields.
As the camera captures two types of images, they should be processed separately in PIX4Dfields.
In order to process the images:
- Crate a new project, import only ONE folder (RGB, NDVI, or NDRE)
- Click process.

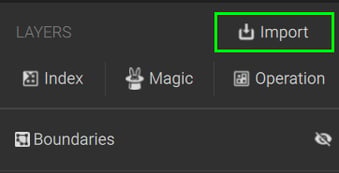

- After processing the first folder of images, go to Import
- Select the second folder RGB/RedEdgge/NIR images.
Two orthomosaics will be available afterward to calculate indices: RGB, NDVI, NDRE, or multispectral, depending on the camera used.
