      AutoGCPs detection functionality - PIX4Dcloud Advanced



      This article explains how to include GCPs on PIX4Dcloud Advanced for automatic detection.

      IN THIS ARTICLE

      Image and GCP requirements
      Upload the GCP file
      Define the GCP coordinate system
      See and edit the defined control points
      Start processing

      Access: This feature is only available on PIX4Dcloud Advanced and when a 3D map or a 2D orthomosaic template is selected.

      Image and GCP requirements



      For the AutoGCPs detection algorithm to succeed, the following requirements regarding the images and the GCPs must be met. Additional information and best practices are available in Automatic detection of targets - AutoGCP algorithm.

      Image requirements

      • Image quality has to be good (blurry or low-contrast images make the algorithm fail).
      • Images have to be geolocated in WGS84 (EPSG:4326).
      • Images' geolocation accuracy has to be equal to or better than 5 meters horizontally and 10 meters vertically.
      • Images have to be taken at nadir or slightly oblique angles.

      GCP requirements

      • Squared, diagonal, and Aeropoints targets are supported.
      • The recommended size is a minimum of 20 times the average GSD of the project.
        Example: If the average GSD of the projects is 2.5 cm (1 inch), the recommended target size is 50 cm (20 inches).
      • Black and white targets are supported. Other colors may work in some circumstances.
      • GCPs must be placed at a distance of at least 10 m from each other.
      • GCPs must have a projected coordinate system.


      Warning: If the AutoGCPs detection algorithm fails, the processing will run with no GCPs.

      Upload the GCP file

      1. Follow the instructions to create a new dataset.
      2. Once at step 4. GCPs automation, select Upload file.
      3. Browse the CSV file which contains the GCPs' details and click Open.
      4. The GCPs are imported.
      5. (Optional) Click Replace file to upload a new GCP file.
      6. (Optional) Click delete.pngto delete the GCP file.
      Important: The format of the file is described here.
      • First column (required): Label.
      • Second column (not required): Type (either GCP or CHECKPOINT with capital letters). The default value is GCP.
      • Third column (required): X coordinate.
      • Fourth column (required): Y coordinate.
      • Fifth column (required): Z coordinate.
      • Sixth column (not required): XY accuracy.
      • Seventh column (required if the sixth column is defined): Z accuracy.
      Commas should separate fields, and there should be no header. See the following example.
      Example: File with 5 GCPs and 1 Checkpoint in projected coordinates without accuracy values.
      001_,GCP,4392829.089,5386534.037,424.524
      002_,GCP,4392772.823,5386545.0894,424.582
      003_,GCP,4392732.981,5386516.197,424.723
      004_,CHECKPOINT,4392761.505,5386468.789,422.646
      005_,GCP,4392755.707,5386431.546,426.298
      006_,GCP,4392832.252,5386456.906,427.001

      Define the GCP coordinate system

      Once the CSV file is uploaded, specify the additional properties for the GCPs.

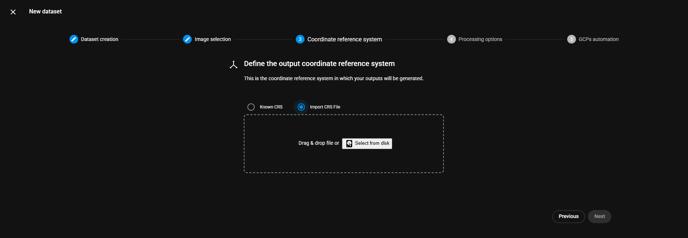

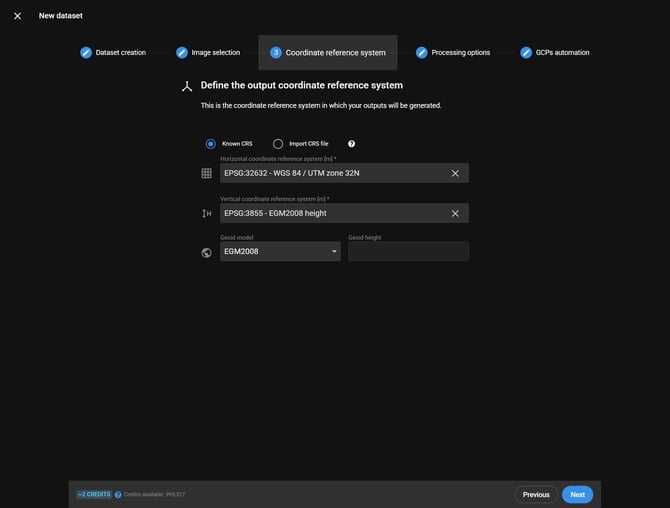

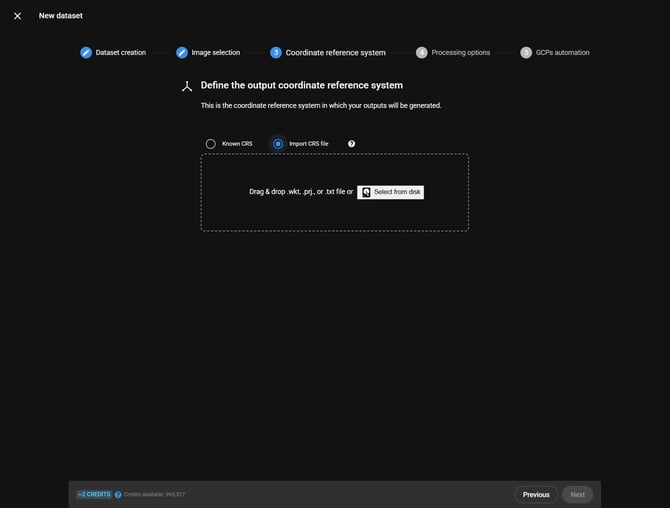

      • Coordinate system: Drag and drop a PRJ file defining the coordinate system, or search a coordinate system based on: EPSG code or name of the coordinate system.
      Important: Only projected coordinate systems can be selected. If the GCPs are given in feet, the .prj file which defines the coordinate system must also be given in feet.
      Warning: The output coordinate system and the GCPs coordinate system must be the same. If the user selects a different coordinate system for the GCPs, the previously defined output coordinate system will be overwritten.

      GCPs atuomation PIX4Dcloud

      Importing GCPs on PIX4Dcloud Advanced project.

      See and edit the defined control points

      Click See and edit control points to access the control points Table.

      Control points Table

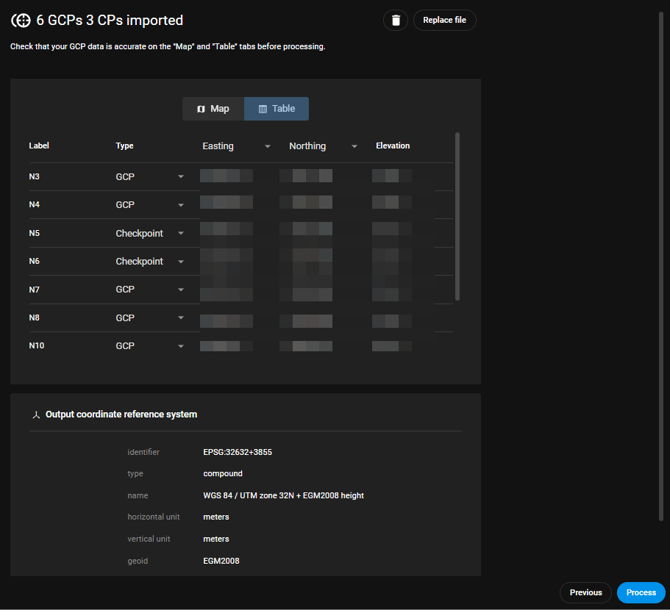

      The Control points Table lists the imported control points and their properties.

      • Ensure that the imported coordinates are correct.
      • (Optional) Change the Type of the control points by opening the dropdown menu and selecting GCP or Checkpoint.
      • (Optional) If the values are inverted, easily swap Easting with Northing coordinates by opening the dropdown menu when clicking one of the two words in the table header.

      Table GCPs PIX4Dcloud

      Changing the Type of the control points from CGP to Checkpoint.

      Control points Map

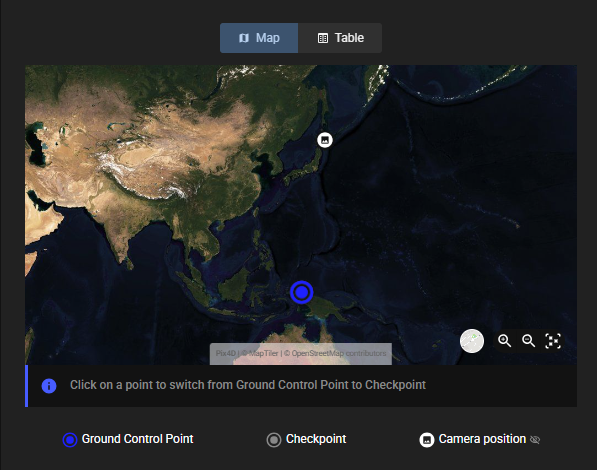

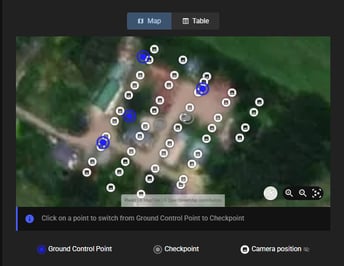

      When clicking Map, an OpenLayers map is displayed with the GCPs and Checkpoints.

      • Ensure that the control points are displayed at the expected locations. If this is not the case, the coordinate system and/or values have been incorrectly defined. GCP gelocation in map PIX4Dcloud -1
      • (Optional) Click on a point to switch from GCP to CP or the other way around.
      • (Optional) Click Save to save the changes.

      Start processing

      Click Process to conclude the dataset creation and to start uploading the input files for processing.

      • The dataset starts to be processed.
      • The AutoGCPs detection algorithm will run. If the GCPs are not found, an email is sent to the user email address explaining that no GCPs were found and the processing will be done without using them.
      • When the process is finished, an email is sent and the Quality Report of the project is attached.
      • In the Files > GCPs section of the project, if the algorithm detected the GCPs, the details of the GCP marks will be shown.
