Mosaic Editor Workflow

Follow

Important: For more information about the Mosaic Editor: Menu View > Mosaic Editor.



The first time the Mosaic Editor is opened:

The Orthomosaic generated in step 3. DSM, Orthomosaic and Index (Generated Mosaic) is copied in order to be edited (Edited Mosaic)

The DSM generated in step 3. DSM, Orthomosaic and Index is loaded and can be visualized.

The DTM generated in step 3. DSM, Orthomosaic and Index is loaded and can be visualized.

The Edited Mosaic is loaded in the Mosaic View and can be edited.



When drawing a new Region:

The region is displayed in the Mosaic View and can be edited by using the Mosaic Editing right sidebar.



When selecting a Region:

The Mosaic Editing sidebar allows to edit the Mosaics for the selected Region.

It is possible to edit the area of the region and the projection used for the region:

  • Editing the area: By clicking in the vertices of the region and dragging the mouse to a new position.
  • Editing the projection: There are 2 different ways to edit a region using the Images section of the right sidebar:
    a. Select an image in Planar Projection.
    b. Select one or multiple images in Ortho Projection. If multiple images are selected, they will be blended together.

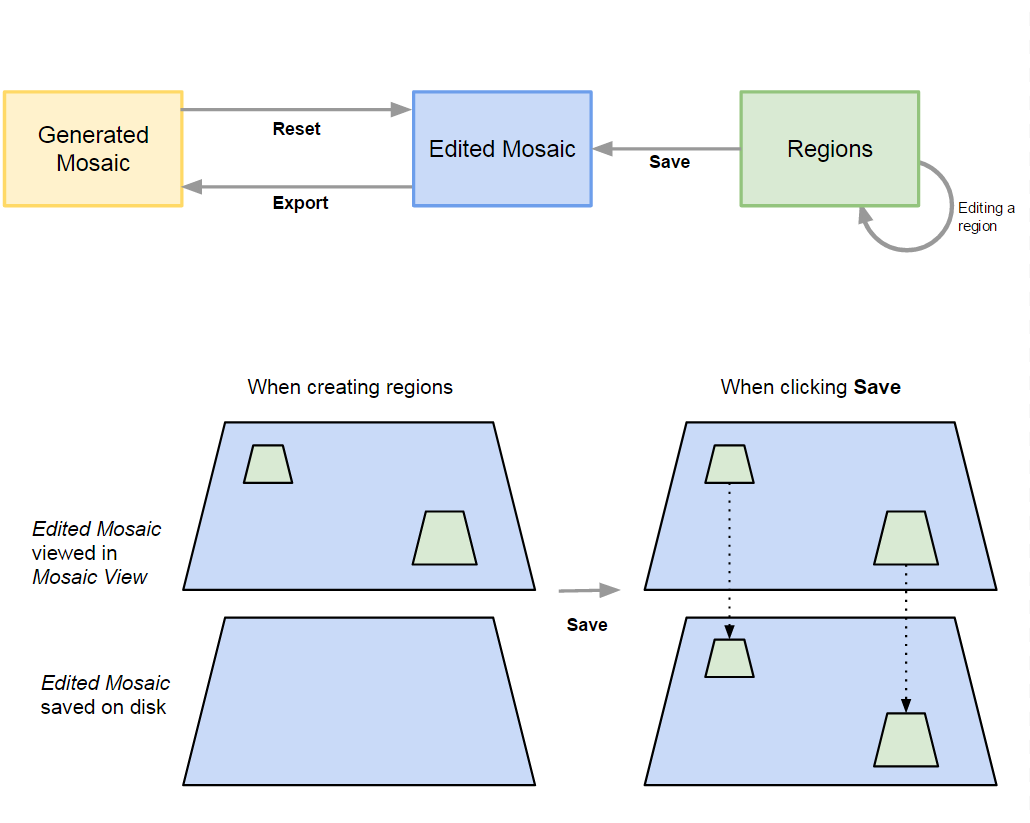

Note: Edited Mosaic viewed in Mosaic View:
The Mosaic View displays the Edited Mosaic saved on disk and on top is overlaying the regions created and their selected projection.



When clicking Save:

Saves the changes of the selected Edited Mosaic to a temporary disk (Overwrites only the areas corresponding to the existing regions using the selected projections).

The saved Edited Mosaic will be used when exporting and when opening the Mosaic Editor again.


Note: Edited Mosaic saved on disk:
The Edited Mosaic in disk is overwritten by changing the content of the regions with the new projection selected.



When clicking Reset:

Reset the Edited Mosaic with the Generated Mosaic (which is stored in the results folder).



When clicking Export:

The Edited Mosaic overwrites the Generated Mosaic that is stored in the results folder.


Warning:
  • Ensure that all changes to be exported are saved.
  • Exporting the edited mosaic will overwrite the mosaic that was generated at step 3. DSM, Orthomosaic and Index.



When opening the Mosaic Editor:

The last saved Edited Mosaic is loaded in the Mosaic View.

If any region was drawn, it is loaded and displayed together with the selected projection in the Mosaic View as Region layer.
