      How to attach an image to an annotation in PIX4Dcloud

      This article describes how to attach an image to an annotation in PIX4Dcloud so it can be visualized in the viewer.

      IN THIS ARTICLE

      Image attachment and screenshot for annotation PDF report

      How to attach/replace and delete an image attachment to an annotation

      How to attach/replace and delete an screenshot for the PDF report to an annotation



      Image attachment and screenshot for annotation PDF report

      There are two different ways to attach an image to an annotation in PIX4Dcloud or PIX4Dcloud Advanced.

      • Image attachment: It is an image that can be manually uploaded by the user from PIX4Dcatch.
      • Screenshot for annotation report: It is automatically created when an annotation is done and it will be included in the annotation PDF report available for PIX4Dcloud Advanced users.

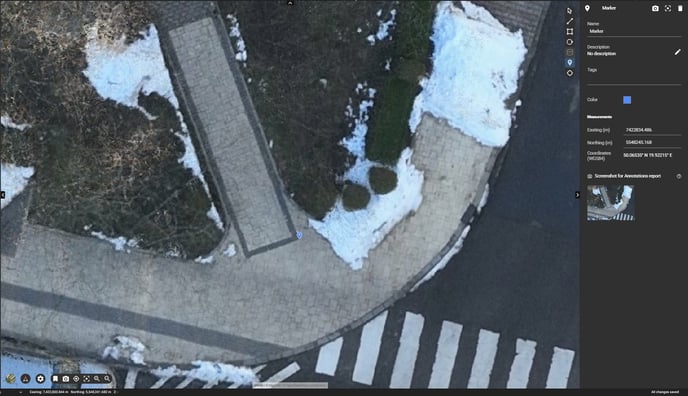

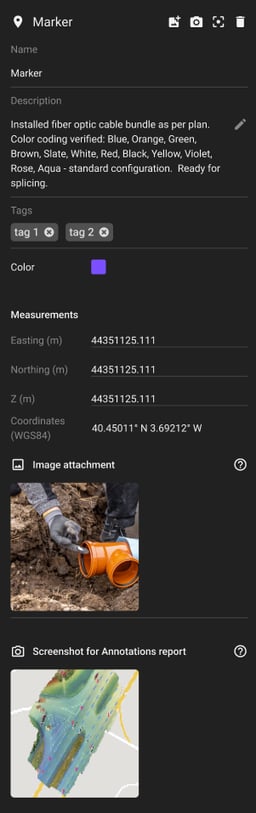

      When clicking on an annotation, the right panel will show first the image attachment and second the screenshot in the lower part of the properties.



      Information: The image attachment is only available from PIX4Dcatch and it can only be attached to a marker.



      Information: The screenshot for annotation report is the image that will be included together with the annotation when a PDF annotation report is generated. If an image has been attached from PIX4Dcatch, it will also be included in the  annotation report.



      Information: For projects created before the release of the annotation report or for projects including annotations that have not been created in PIX4Dcloud (e.g. annotations imported from an external file or annotations imported from PIX4Dsurvey), there is no screenshot attached to the annotation.

      How to enlarge and download an image that is attached to an annotation (marker only).

      1. In the right panel, click on the image that was attached in PIX4Dcatch:enlarge
      2. The image will be enlarged:download-2
      3. Click on close or download.

      Information: The image cannot be replaced or deleted for now.





      How to attach/replace and delete an screenshot to an annotation

      1. Create an annotation
      2. As soon as it is created an screenshot of the annotation will be generated and visible in the right panel of the annotation.

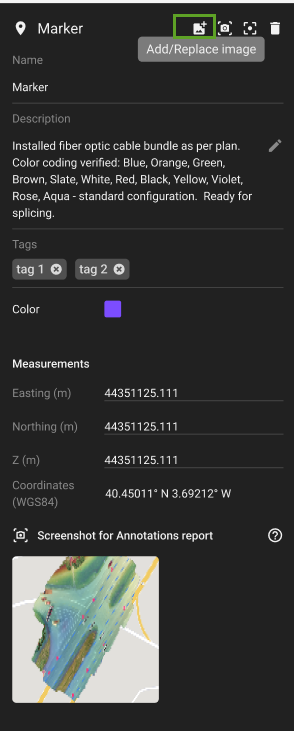

      3. To modify the screenshot, the Add/replace image button is on top of the right panel.


      4. To delete the attached image, clicking inside the image to get the close button and confirm the deletion .
