The following article describes how to generate vegetation indices using the default index options and how to generate a customized index using the index calculator

 Previous  |  Next

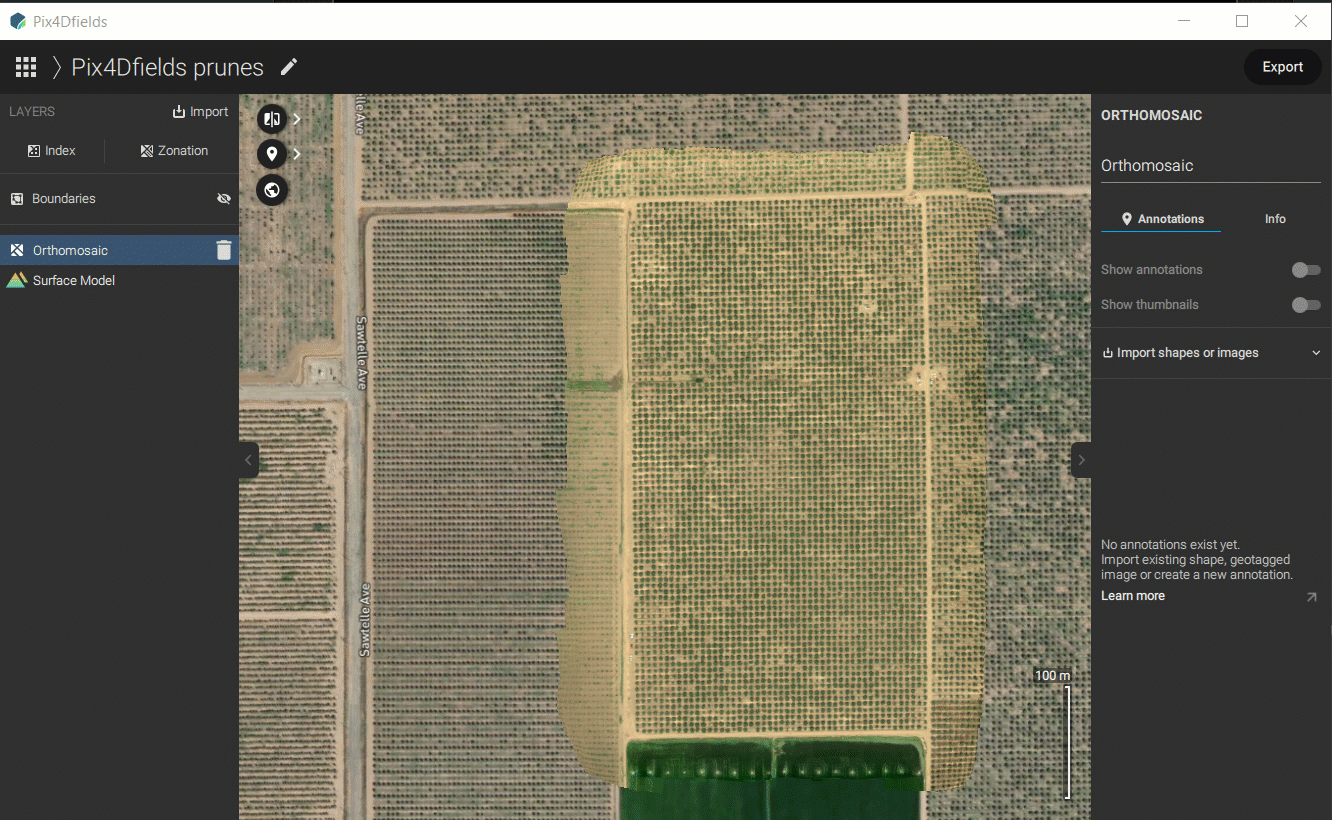

Information: The following article describes how to generate vegetation indices using the default index options, and how to generate a customize index using the index calculator.Test4.gif
Tip: To do soil and plant masking maps using PIX4Dfields see the workaround in our community.

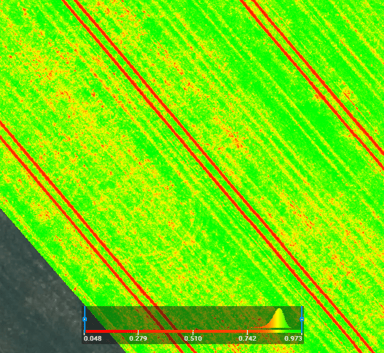

Index generator

To generate predefined indices based on the orthomosaic after processing the images.

1. Click Index above the Layers Menu. The INDEX GENERATOR tool opens.
2. Select the Source layer.
3. Select the vegetation index that you want to generate by checking the corresponding boxes.
4. Click Generate.

Note: The most commonly used vegetation indices are available by default in PIX4Dfields. However, the spectral composition of your dataset will determine which vegetation indices are available to generate.  For example, the list of default indices will be different for RGB versus multispectral imagery due to the different composition of spectral bands.

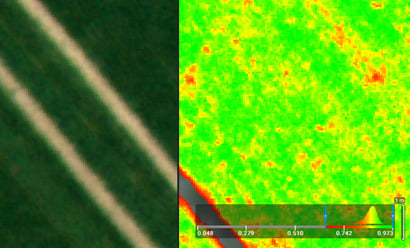

Available indices

Note: Try PIX4Dfields now! Register for a free 15 days trial, and download our Example datasets to learn how easy it is to generate all these indices.
Index Description Formula Image import type Platform
BNDVI - Blue Normalized Difference Vegetation Index NDVI index without red channel availability, for areas sensitive to chlorophyll content. (nir - blue) / (nir + blue) Multispectral (excluding Sequoia) Drone and satellite.
GNDVI - Green Normalized Difference Vegetation Index NDVI index without red channel availability, for areas sensitive to chlorophyll content. (nir - green) / (nir + green) Multispectral Drone and satellite.
LCI - Leaf Chlorophyll Index

Index to assess chlorophyll content in areas of complete leaf coverage.

Value range clamp between -1 and 1.

(nir - rededge) / (nir + red)  Multispectral Drone and satellite.
MCARI - Modified Chlorophyll Absorption in Reflective Index Index used to measure chlorophyll concentrations including variations in the Leaf Area Index. 1.2 * (2.5 * (nir - red) - 1.3 * (nir - green)) / (normalized to the maximum value of red, green, and nir bands) Multispectral Drone and satellite.
NDRE - Normalized Difference Red Edge Index sensitive to chlorophyll content in leaves against soil background effects. This index can only be formulated when the red edge band is available. (nir - rededge) / (nir + rededge) Multispectral Drone and satellite.
NDVI - Normalized Difference Vegetation Index Generic index used for leaf coverage and plant health. (nir - red) / (nir + red) Multispectral Drone and satellite.
SIPI2 - Structure Intensive Pigment Index 2

Index used in areas with high variability in canopy structure (e.g. forestry).


(nir - green) / (nir - red) Multispectral Drone and satellite.
TGI - Triangular Greenness Index RGB index for chlorophyll sensitivity. (green - (0.39 * red) - (0.61 * blue)) /(normalized to the maximum value of red, green, and blue bands) RGB Drone and satellite.
VARI - Visible Atmospherically Resistant Index RGB index for leaf coverage. min(1; max(-1; (green - red) / (green + red - blue) )) RGB Drone and satellite.
NDMI - Normalized Difference Moisture Index NDWI uses the NIR and SWIR bands to monitor changes in water content of leaves. (nir - swir_1613) / ( nir + swir_1613) Multispectral Satellite
Note 1: min(1, max(-1, ...) is clamping the values between -1 and 1.

Index calculator

To generate a custom index using the index calculator.

1. Open the INDEX GENERATOR by clicking the icon at the top right of the window.
2. Choose the source layer.
3. Click Create custom index below the list of available indices.
4. Name the index.
5. Enter the formula either by clicking the Operations and the Available bands buttons or by using your keyboard.
When a formula is valid, the Preview button turns green.
6. Click the Preview button to preview your index.
7. When you are satisfied with the preview, click Apply
8. The generated custom index now appears in the list of layers and in the map interface.

Custom indices can be created depending on the available bands from your imported images, these are listed as buttons under Available bands.

Note: Single-band reflectance maps can be generated using the index calculator. For more information: How to generate reflectance maps with PIX4Dfields?

The Operations buttons are described below:

Operation Description Operation Description
( open parenthesis ^ exponentiation
) close parenthesis abs absolute value
* multiplication exp exponential (e^x)
+ addition log natural logarithm
- subtraction max maximum value between two arguments, the separator is ";" (semicolon)
/ division min minimum value between two arguments, the separator is ";" (semicolon)
; (semicolon) separator for functions that take more than one parameter sqrt square root
