Menu Process > Processing Options... > 1. Initial Processing > Calibration - PIX4Dmapper

This article explains in detail the Calibration processing step in PIX4Dmapper.

1. Initial Processing

2. Point Cloud and Mesh

3. DSM, Orthomosaic and Index

Resources and Notifications

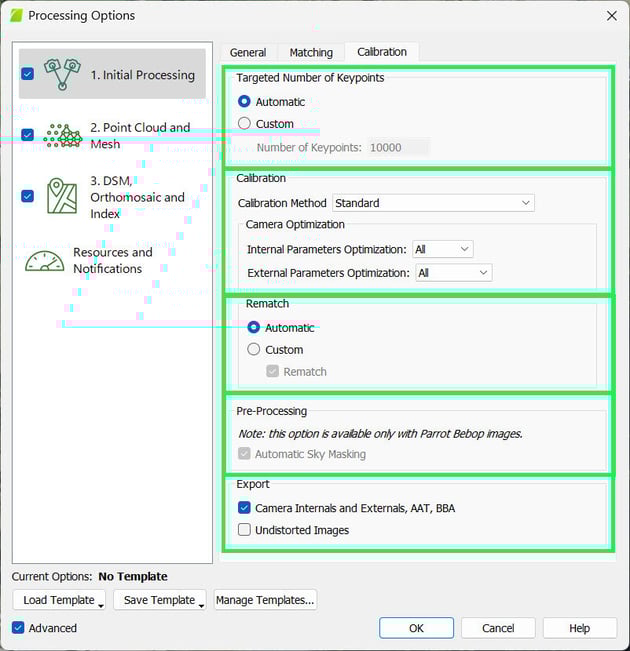

Allows to change the processing options and desired outputs for step 1. Initial Processing. It contains 5 sections:

• Targeted Number of Keypoints: Allows to set up the number of keypoints extracted.
• Calibration: Allows to select how the camera's internal and external parameters are optimized.
• Rematch: Allows to add more matches after the first part of the initial processing.
• Pre-Processing: Allows to select the pre-processing options.
• Export: Allows to select the outputs of step 1. Initial Processing.

Targeted Number of Keypoints

Allows to set up the number of keypoints to be extracted.

• Automatic (Default): Automatic way to select which keypoints are extracted.
• Custom: Directs PIX4Dmapper to identify a specific number of keypoints, image content permitting.
• Number of Keypoints: Maximum number of keypoints to be extracted per image.

Calibration

Allows selecting how the camera internal and external parameters are optimized.

The optimization step consists of running the Automatic Aerial Triangulation (AAT), Bundle Block Adjustment (BBA), and camera self-calibration steps multiple times, till an optimal reconstruction is achieved:

• Calibration Method
• Standard (default)
• Alternative: Optimized for aerial nadir images with accurate geolocation, low texture content and relatively flat terrain, fields for example. The calibration will fail if the number of oblique images (>35 deg) in the dataset is higher than 5%. Furthermore, at least 75% of all images have to be geolocated.
• Accurate Geolocation and Orientation: Optimized for the project with very accurate image geolocation and orientation. This calibration method requires all images to be geolocated and oriented. More in the FAQ on the accurate geolocation pipeline.
• Camera Optimization: This option defines which camera parameters are optimized.
  • Internal Parameters Optimization: Defines which internal camera parameters of the camera model are optimized.
    • All (default): Optimizes all the internal camera parameters. Small cameras such as those used with UAVs, are much more sensitive to temperature or vibrations, which affect the camera calibration. Therefore, it is recommended to select this option when processing images that were taken with such cameras.
    • None: Does not optimize any of the internal camera parameters. It is recommended when using large cameras that are already calibrated and when these calibration parameters are used for processing.
    • Leading: Optimizes the most important internal camera parameters. This option is used to process certain cameras such as cameras with a slow rolling shutter speed. The most important internal camera parameters for perspective lens camera models are the focal length and the first two radial distortion parameters whereas for fisheye lens camera model they are the polynomial coefficients.
  • All Prior: Forces the optimal internal parameters to be close to the initial values.
  Tip: If the difference between the initial and optimized camera parameters is higher than 5%, the All Prior can be used to keep the computed values close to the initial values. This typically happens in datasets of flat and homogenous areas that do not provide enough visual information for optimal camera calibration.
  • External Parameters Optimization: The position and orientation of the cameras. Defines how the external camera parameters are optimized.
    • All (default): Optimizes the rotation and position of the camera as well as the linear rolling shutter in case the camera model follows the linear rolling shutter model. In this case, the camera model should be defined accordingly: Menu Project > Image Properties Editor... > Selected Camera Model > Edit Camera Model.
    • None: Does not optimize any of the external camera parameters. Only enabled when Accurate Geolocation and Orientation has been selected as Calibration Method. Only recommended when the camera orientation and position are known and very accurate.
    • Orientation: Optimizes only the orientation of the cameras. Only enabled when Accurate Geolocation and Orientation has been selected as Calibration Method. Only recommended when the camera position is known and very accurate but the orientation is not as accurate as the camera position.

Rematch

Allows to add more matches after the first part of the initial processing, which usually improves the quality of the reconstruction:

• Automatic (Default): Enables rematching only for projects with less than 500 images.
• Custom: Allows to select if rematch is done or not for the project.
• Rematch: Enables the rematch option.

Pre-Processing

Allows to select the pre-processing options:

• Automatic Sky Masking: Selected by default and only available for projects consisting of Parrot Bebop images. Automatic Sky Masking is masking the pixels that are covered by sky on the images to avoid noise in the point cloud.

Export

Allows to select outputs:

• Camera Internals and Externals, AAT, BBA: When this option is selected, the results of the AAT, BBA, and optimized internal and external camera parameters are exported.
• Undistorted Images: When this option is selected, an undistorted copy of each original image is generated using the optimized distortion parameters of the selected camera model.

  Important: This feature is only available when processing images using a perspective lens camera model.

If step 1. Initial Processing has already been done, it is possible to generate undistorted images without running step 1 again. For more information: Menu Process > Save Undistorted Images.
