Here is a description of the available processing templates:

Processing Options Template

Characteristics

Outputs generated

Standard

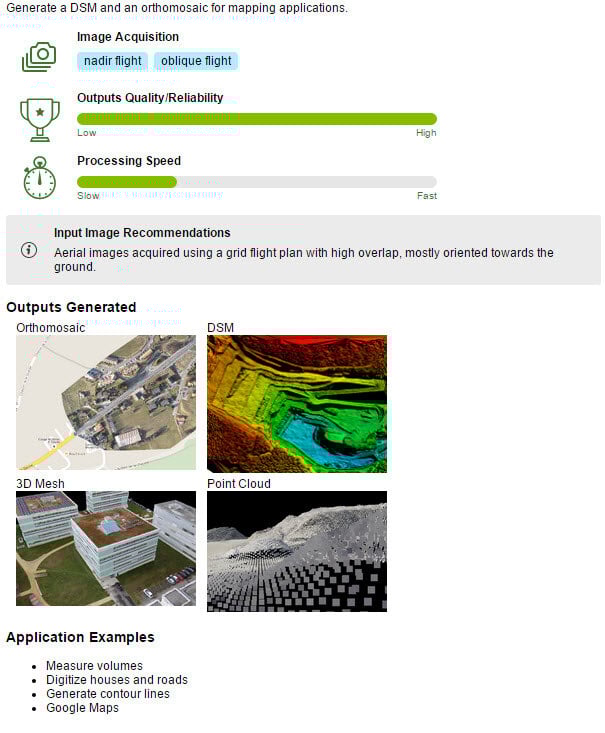

3D Maps Generates a 3D map (point cloud, 3D textured mesh), as well as a DSM and an orthomosaic.
Image acquisition: nadir or oblique flight.
Typical input: aerial images acquired using a grid flight plan with high overlap.
Outputs quality/reliability: high.
Processing speed: slow.
Application examples: quarries, cadaster, etc.

Orthomosaic

DSM

3D Mesh

Point Cloud

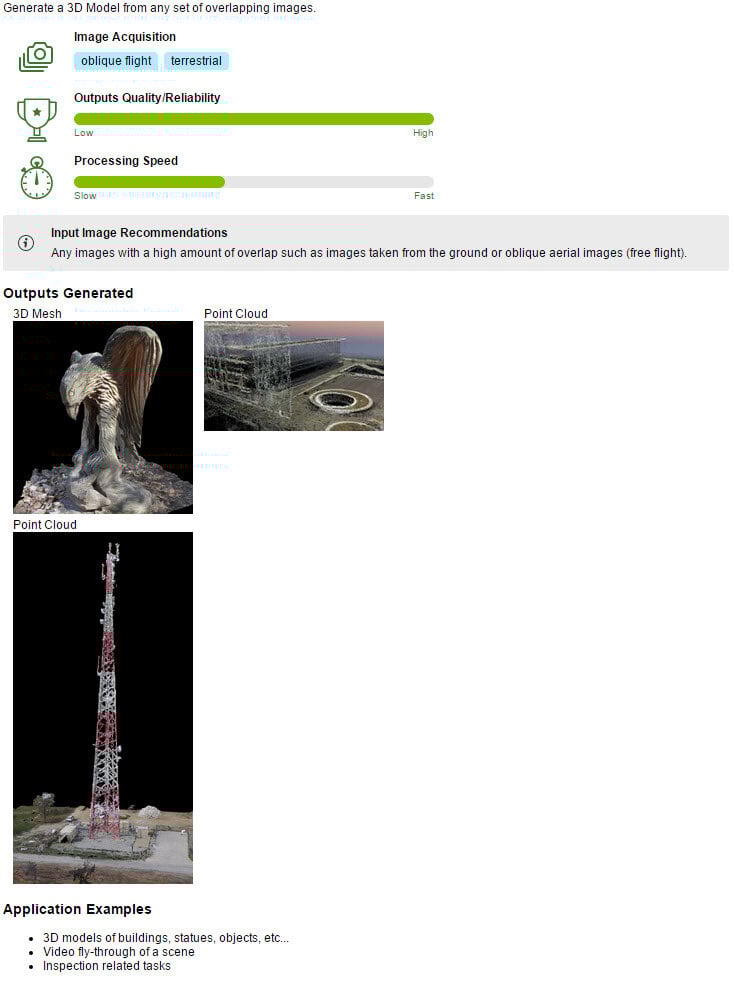

3D Models Generates a 3D model (point cloud, 3D textured mesh).
Image acquisition: oblique flight or terrestrial.
Typical input: any images with high overlap.
Outputs quality/reliability: high.
Processing speed: slow.
Application examples: 3D models of buildings, objects, ground imagery, indoor imagery, inspection, etc.

3D Mesh

Point Cloud

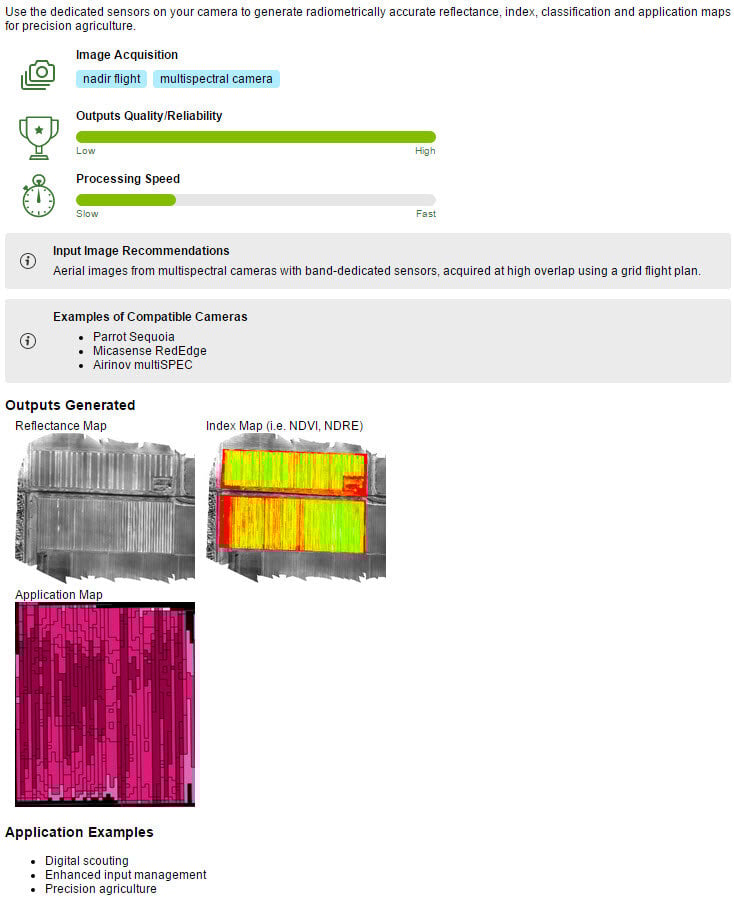

Ag Multispectral  Generates reflectance, index (such as NDVI), classification and application maps.
Image acquisition: nadir flight with a multispectral camera.
Typical input: images taken with a multispectral camera (Sequoia, Micasense RedEdge, Multispec 4C, etc).
Outputs quality/reliability: high.
Processing speed: slow.
Application examples: precision agriculture.

Reflectance Map

Index Map

Application Map

Rapid

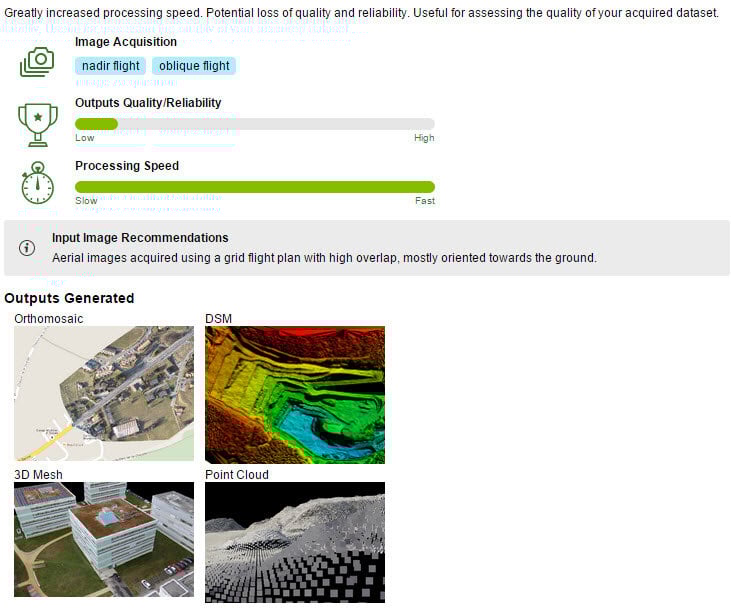

3D Maps - Rapid/Low Res Faster processing of the 3D Maps template for assessing the quality of the acquired dataset.
Outputs quality/reliability: low.
Processing speed: fast.

Orthomosaic

DSM

3D Mesh

Point Cloud

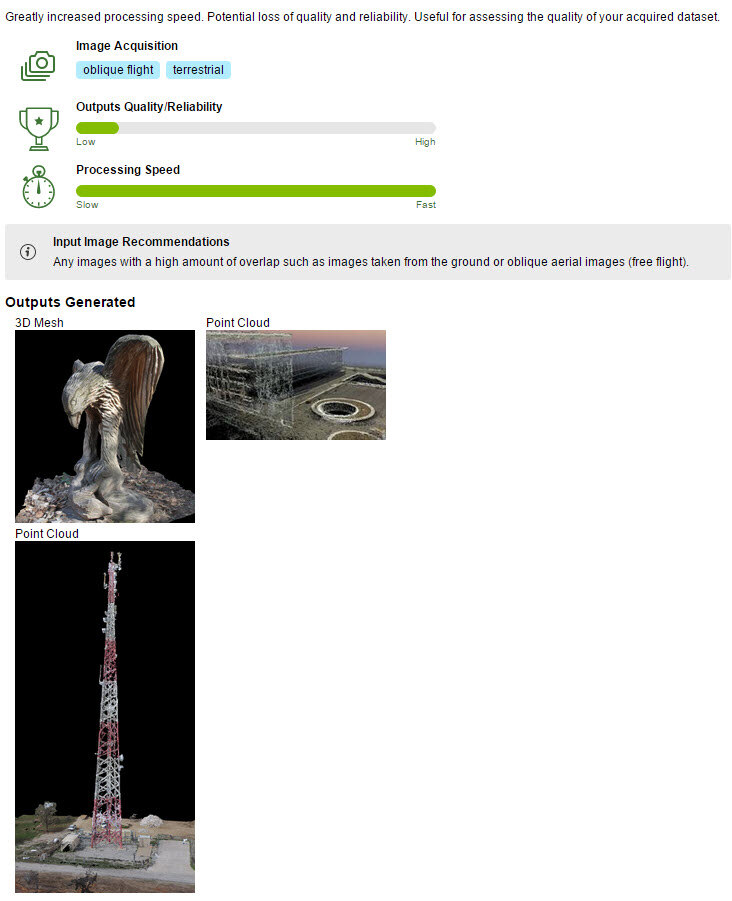

3D Models - Rapid/Low Res Faster processing of the 3D Models template for assessing the quality of the acquired dataset.
Output quality/reliability: low.
Processing speed: fast.

3D Mesh

Point Cloud

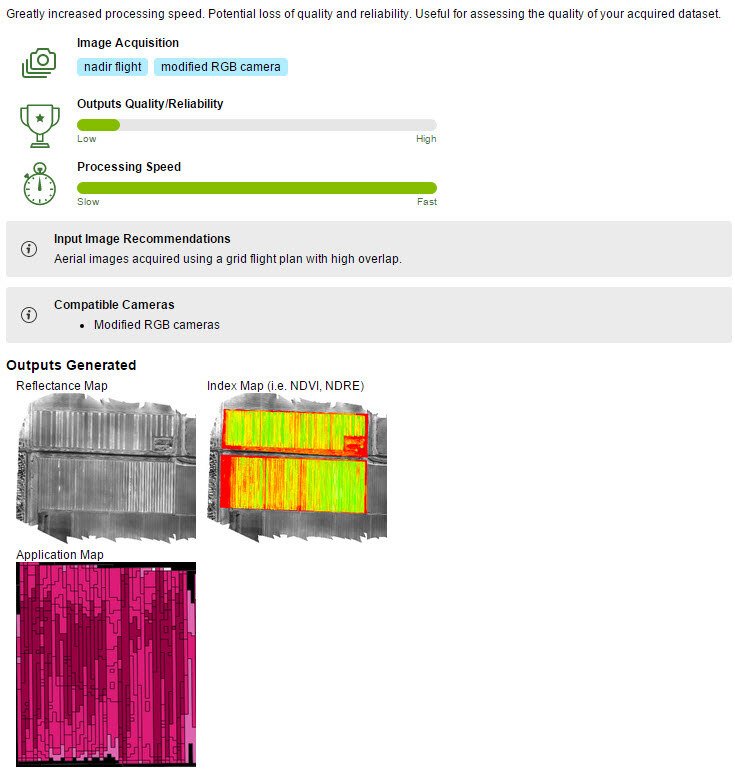

Ag Modified Camera - Rapid/Low Res Faster processing of the Ag Modified Camera template for assessing the quality of the acquired dataset.
Output quality/reliability: low.
Processing speed: fast.

Reflectance Map

Index Map

Application Map

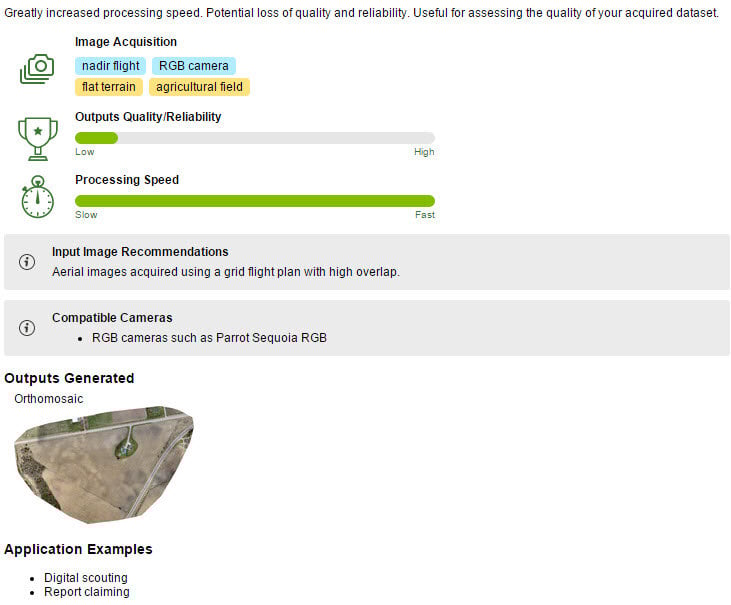

Ag RGB - Rapid/Low Res Faster processing of the Ag RGB template for assessing the quality of the acquired dataset.
Output quality/reliability: low.
Processing speed: fast.
Orthomosaic
Advanced

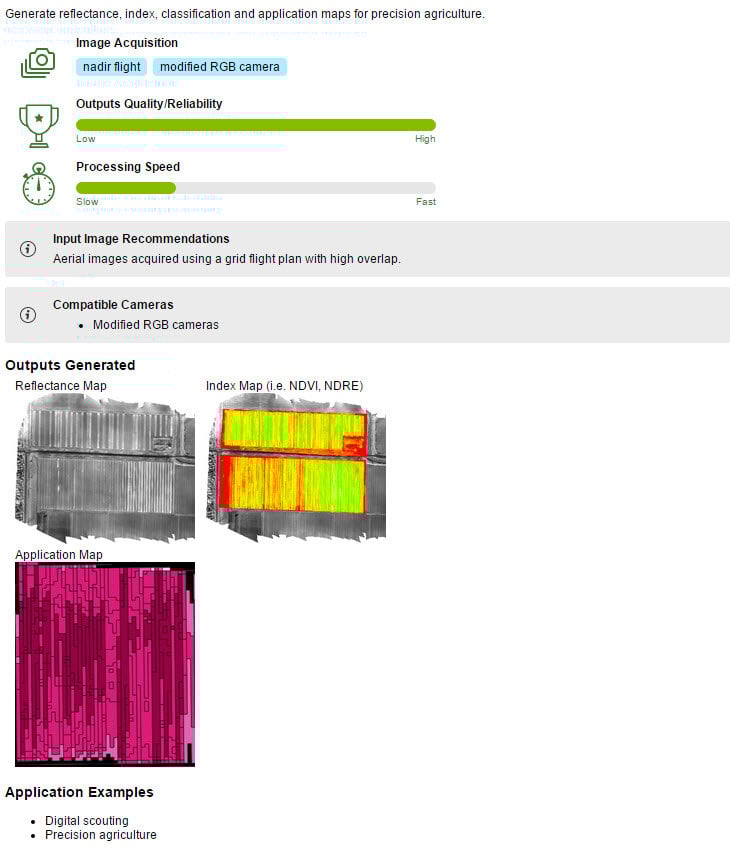

Ag Modified Camera Generates reflectance, index (such as NDVI), classification and application maps.
Image acquisition: nadir flight with a modified RGB camera.
Typical input: images taken with a modified RGB camera.
Outputs quality/reliability: high.
Processing speed: slow.
Application examples: precision agriculture.

Reflectance Map

Index Map

Application Map

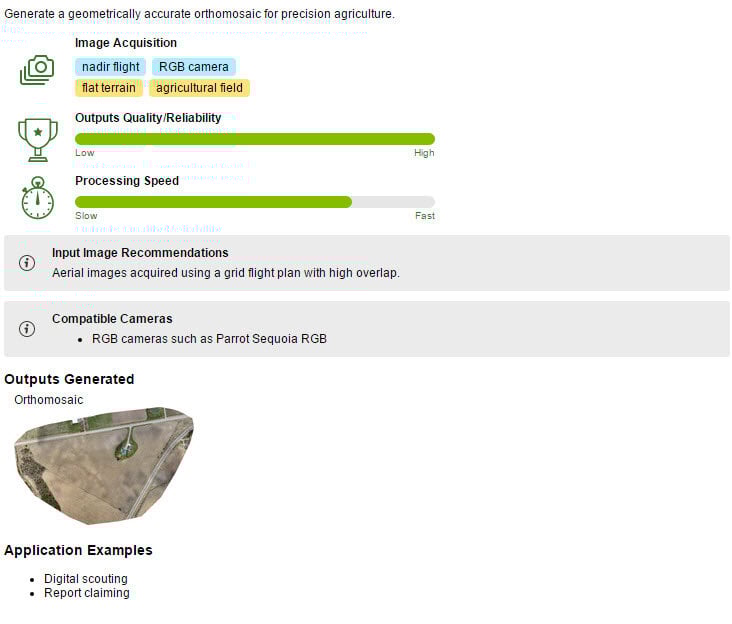

Ag RGB Generates an orthomosaic for precision agriculture.
Image acquisition: nadir flight over flat terrain with an RGB camera.
Typical input: images taken with an RGB camera for agriculture (Sequoia RGB).
Outputs quality/reliability: high.
Processing speed: average.
Application examples: digital scouting, report claiming for precision agriculture.
Orthomosaic

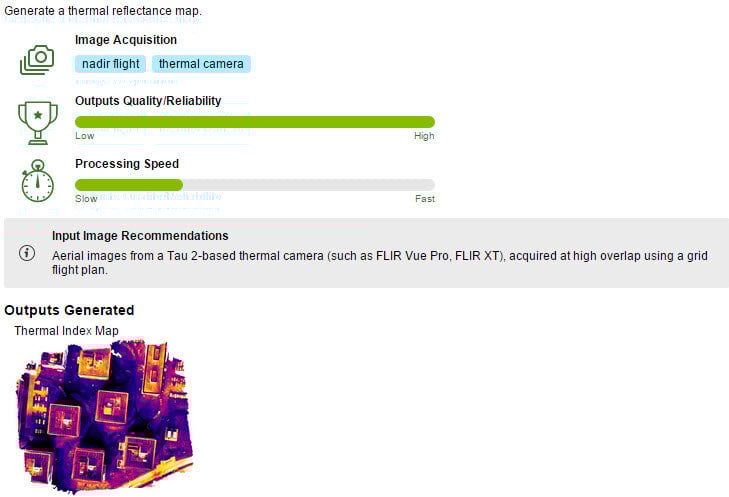

Thermal Camera Generates a thermal reflectance map.
Image acquisition: nadir flight with a thermal camera.
Typical input: images taken with a thermal camera (such as Tau 2 based cameras: FLIR Vue Pro, FLIR XT).
Output quality/reliability: high.
Processing speed: slow.
Thermal Index Map

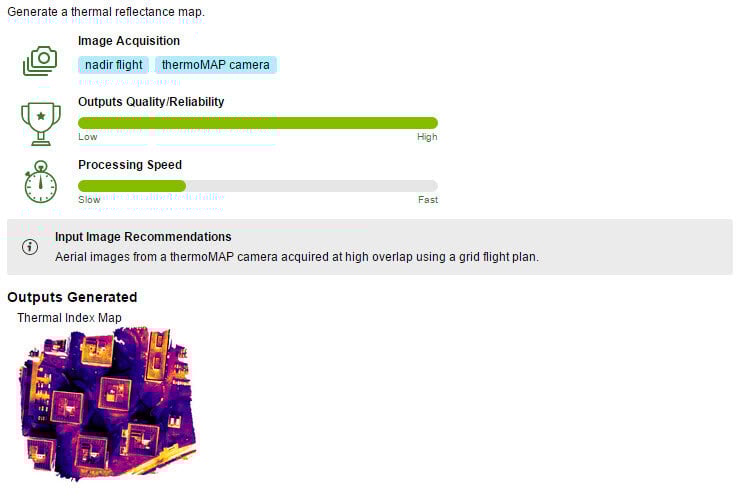

ThermoMAP Camera Generates a thermal reflectance map.
Image acquisition: nadir flight with a thermoMAP camera.
Typical input: images taken with a thermoMAP camera.
Output quality/reliability: high.
Processing speed: slow.
Thermal Index Map

Note: In the window Processing Options Template, a section titled Personal appears above the Standard section when a new personal template has been created by the user.



3D Maps
3D Models
Ag Multispectral
3D Maps - Rapid/Low Res
3D Models - Rapid/Low Res
Ag Modified Camera - Rapid/Low Res
Ag RGB - Rapid/Low Res
Ag Modified Camera
Ag RGB
Thermal Camera
ThermoMAP Camera
