Using PIX4Dcloud AR to View Projects in Augmented Reality - PIX4Dcatch

It is possible to visualize PIX4Dcloud projects directly within the PIX4Dcatch application using Augmented Reality (AR).

PIX4Dcloud AR is exclusively available for users with a PIX4Dcatch professional license. For the most accurate display and geolocation of your project in AR, it is highly recommended to use an RTK device with PIX4Dcatch.

IN THIS ARTICLE

Accessing PIX4Dcloud AR

Viewing Projects in AR

Layer Management

     Autotags in PIX4Dcloud AR

Exiting PIX4Dcloud AR

AR Status



Accessing PIX4Dcloud AR

Follow these steps to open the PIX4Dcloud AR:

  1. Launch the application PIX4Dcatch catch logo
  2. Tap the Tool menu icon and select PIX4Dcloud AR  AR icon

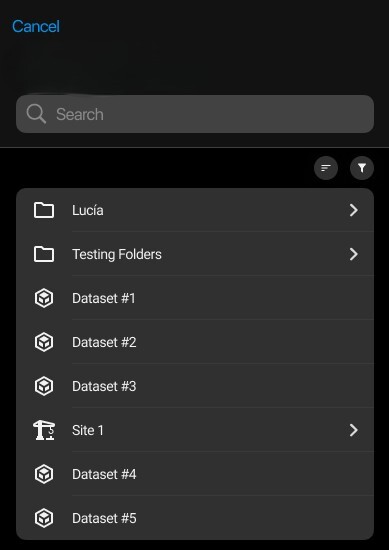

    tools menu

Viewing Projects in AR

Important: Users can use PIX4Dcloud AR feature without an RTK device connected to PIX4Dcatch; however, please be aware that the dataset may not be accurately geolocated in AR as a result. For precise geolocation and optimal display in AR, it is strongly recommended using an RTK device with PIX4Dcatch during data capture.

To view the project in Augmented Reality (AR) follow these steps:

  1. If possible, ensure accurate positioning with an RTK device.
  2. Select the desired PIX4Dcloud project from the list displayed.

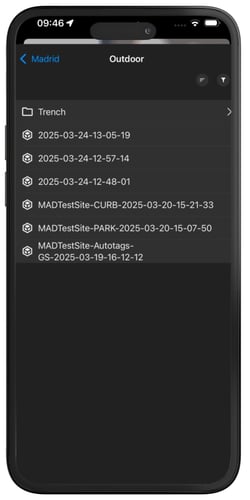

    project listed
  3. Start moving around the project area and the selected project will materialize in Augmented Reality. It is recommended to wait until the RTK signal is fixed to achieve proper alignment.

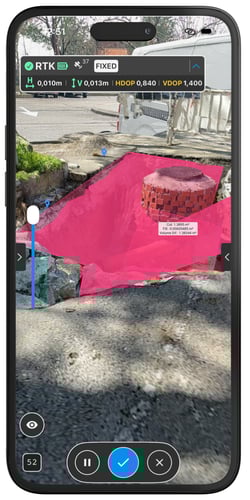

    AR cloud

Layer Management

Optimal AR experience requires managing the visibility and settings of the control layer.

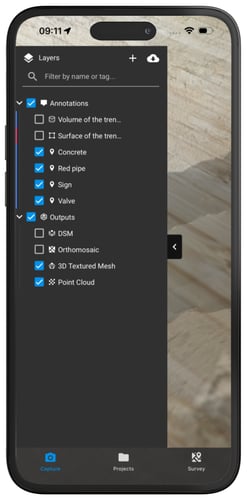

  • Toggle layers and navigate through annotations using intuitive checkboxes to turn them on or off.

          Menu AR

  • Adjust layer opacity to fine-tune annotations and design overlays.

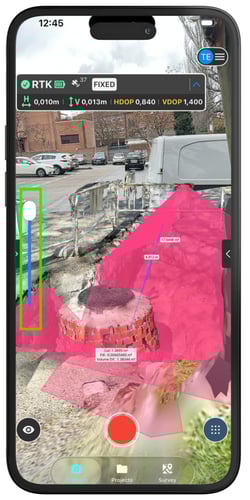

           AR capture

  • Modify properties directly within the AR interface for enhanced customization.

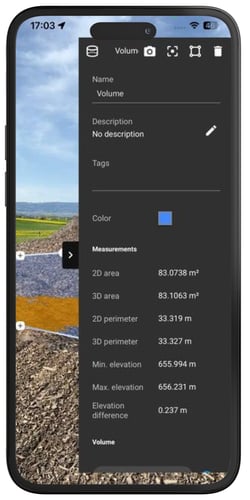

            menu AR

Autotags in PIX4Dcloud AR

Processed Autotags from the PIX4Dcloud project can be used to enhance the model's alignment in augmented reality. This feature works both indoors and outdoors, even when an RTK connection is unavailable.

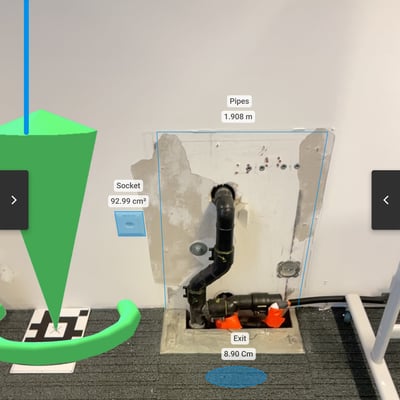

AR indoor

Exiting PIX4Dcloud AR

To close PIX4Dcloud AR and return to the capture interface:

  1. Access the tool menu  and tap the PIX4Dcloud AR .
  2. Confirm the decision to exit when prompted.

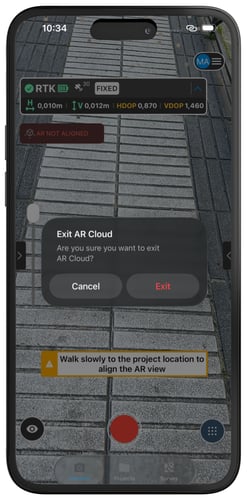

     exit AR

AR Status

When Augmented Reality (AR) PIX4Dcloud projects are uploaded for a capture, the system continuously tracks the AR alignment status. Once the AR PIX4Dcloud project is uploaded, alignment feedback is provided through on-screen messages and visual status indicators.

                   AR status

AR Status Indicator

The AR status indicators appear below the connection card and provide immediate feedback on the current alignment state:

      AR status Indicates that AR points are not currently aligned.

      AR status Indicated that the AR points are properly aligned and ready to use.

On-Screen Alignment Messages

During the alignment process, the system displays contextual messages to guide the user:

       AR indicator

Indicates that the user needs to move the device to help the system find the correct alignment for the AR points.

       AR indicator

Appears when the user is moving too quickly for the system to achieve proper alignment.

       AR indicator

Confirms that the AR PIX4Dcloud project is correctly aligned, and the capturing process can begin.
